DESCRIPTION

The factory recirculates crankcase air into the intake. That air carries oil, moisture and combustion byproducts that contaminate air sent to the turbocharger. Oil- and water-infused vapors coat compressor blades, charge tubes, intercooler and intake valves. On non-turbo models it can alter air/fuel ratio and lower effective octane, reducing performance. Oil also lowers knock threshold and reduces knock protection.

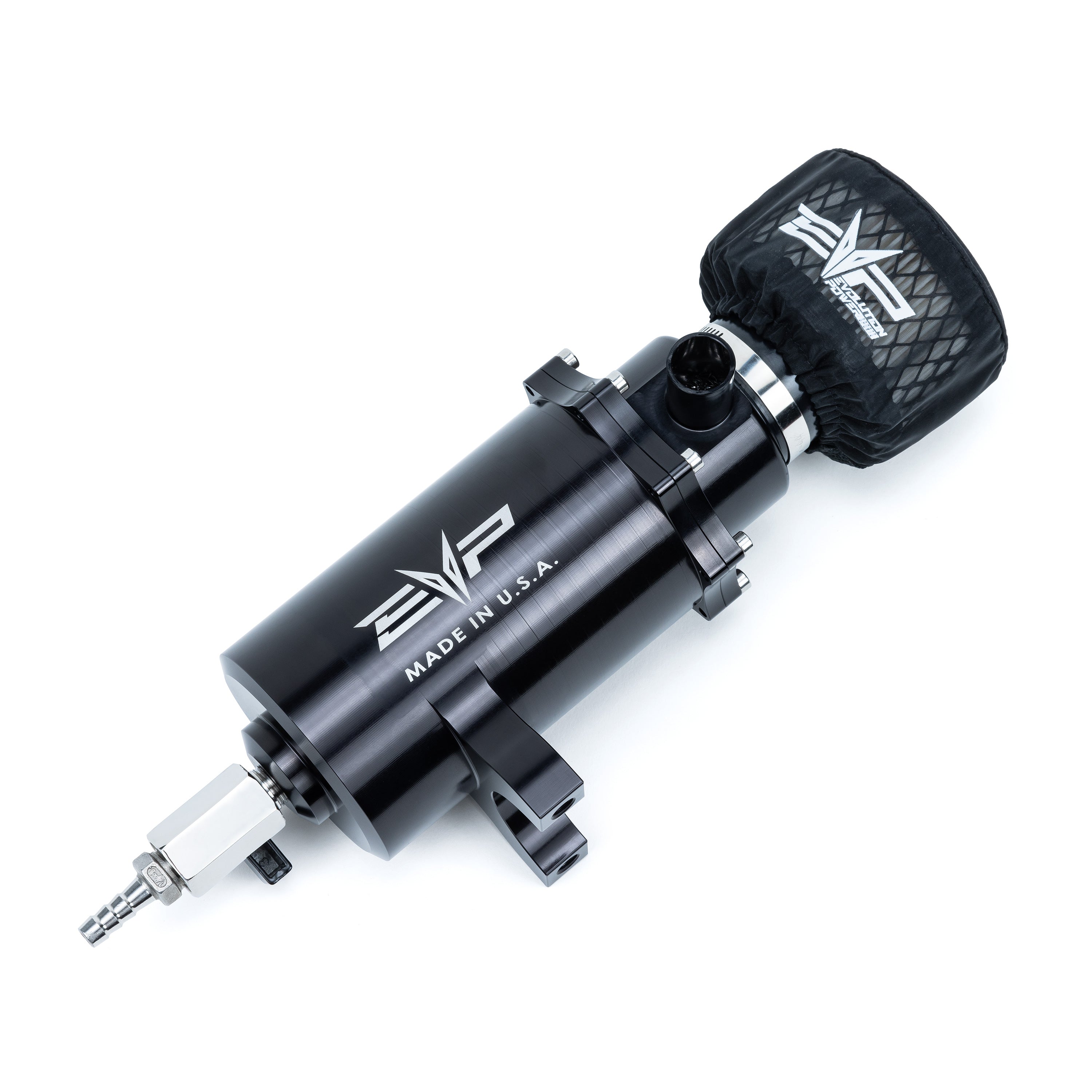

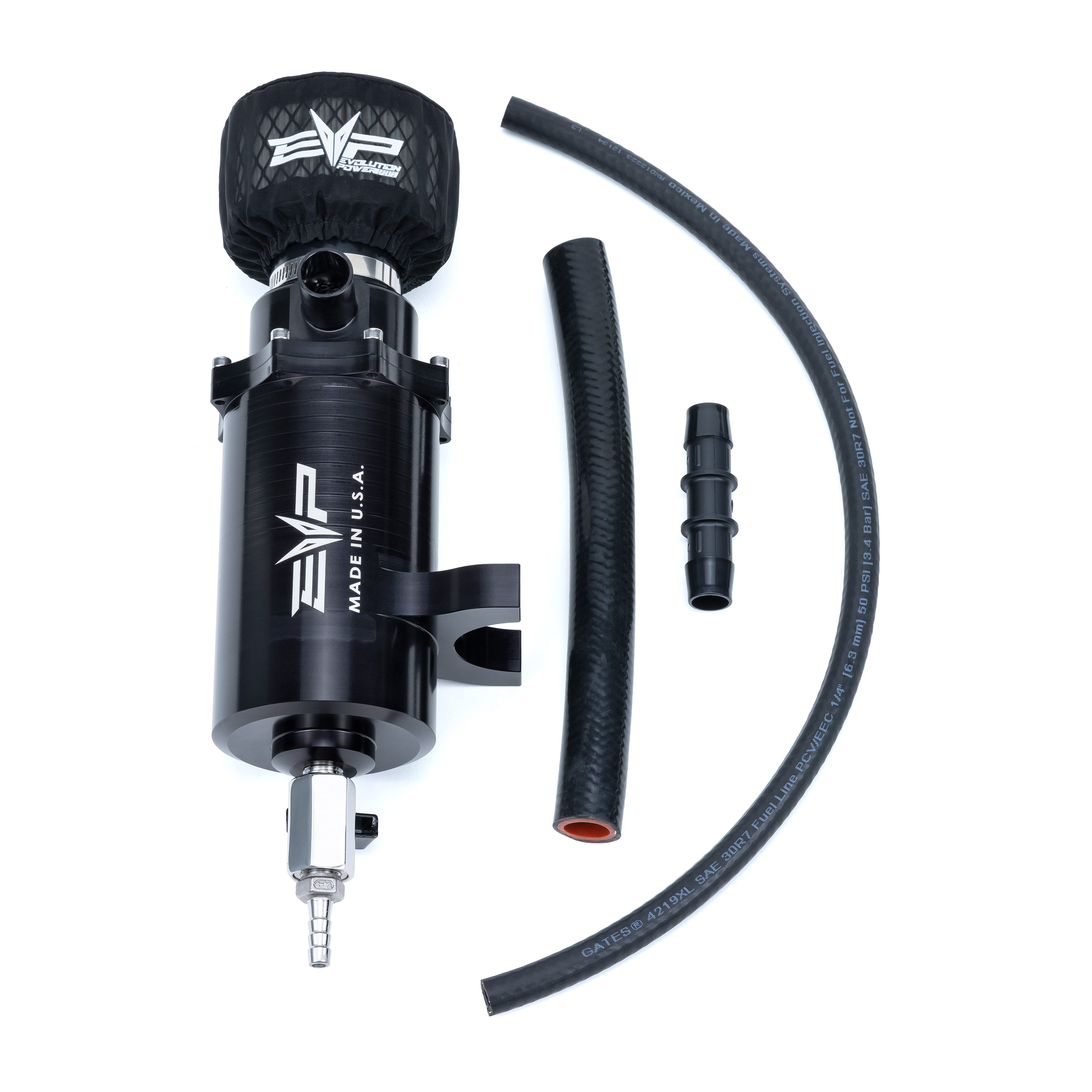

The EVP catch can is CNC-machined billet aluminum and mounts to the frame rail above the clutch housing. The OEM crankcase vent hose is rerouted to the separator. The internal baffle uses a perforated stainless steel cylinder and additional steel screening to condense and separate oil from the vapors. The kit includes a filter element, pre-filter and a petcock-style drain valve for clean periodic emptying.

A silicone cap is provided to block the intake boot breather port. All hardware is stainless steel and the separator body is powder coated black. The billet cap can be rotated in 45-degree increments for different mounting orientations and is removable for full cleaning.

NEW-AND-IMPROVED FEATURES:

• Integrated perforated stainless steel baffle to reduce oil syphoning
• Additional stainless steel screening for improved vapor separation
• Petcock-style drain valve for cleaner periodic draining

ORIGINAL/ADDITIONAL FEATURES:

• Body and frame mount machined from a solid block of 6160-T6 aluminum with no welding
• Simple, easy installation
• Shipped ready for mounting on the X3 frame; billet cap rotates in 45-degree increments for alternate locations
• Anodized black finish with stainless hardware
• Designed for the Can Am X3
• Reuses the OEM crankcase vent hose—no extra fittings required
• Prevents oil and moisture from contaminating the turbo compressor, charge tubes and intercooler
• Prevents oil from lowering the effective octane of incoming air/fuel mixture
• Filter element and prefilter included
• PROUDLY made in the USA by US craftsman
• Fits all 2016+ Defender HD10 models

FITMENT

2016+ Can-Am Defender HD10 (all models)
