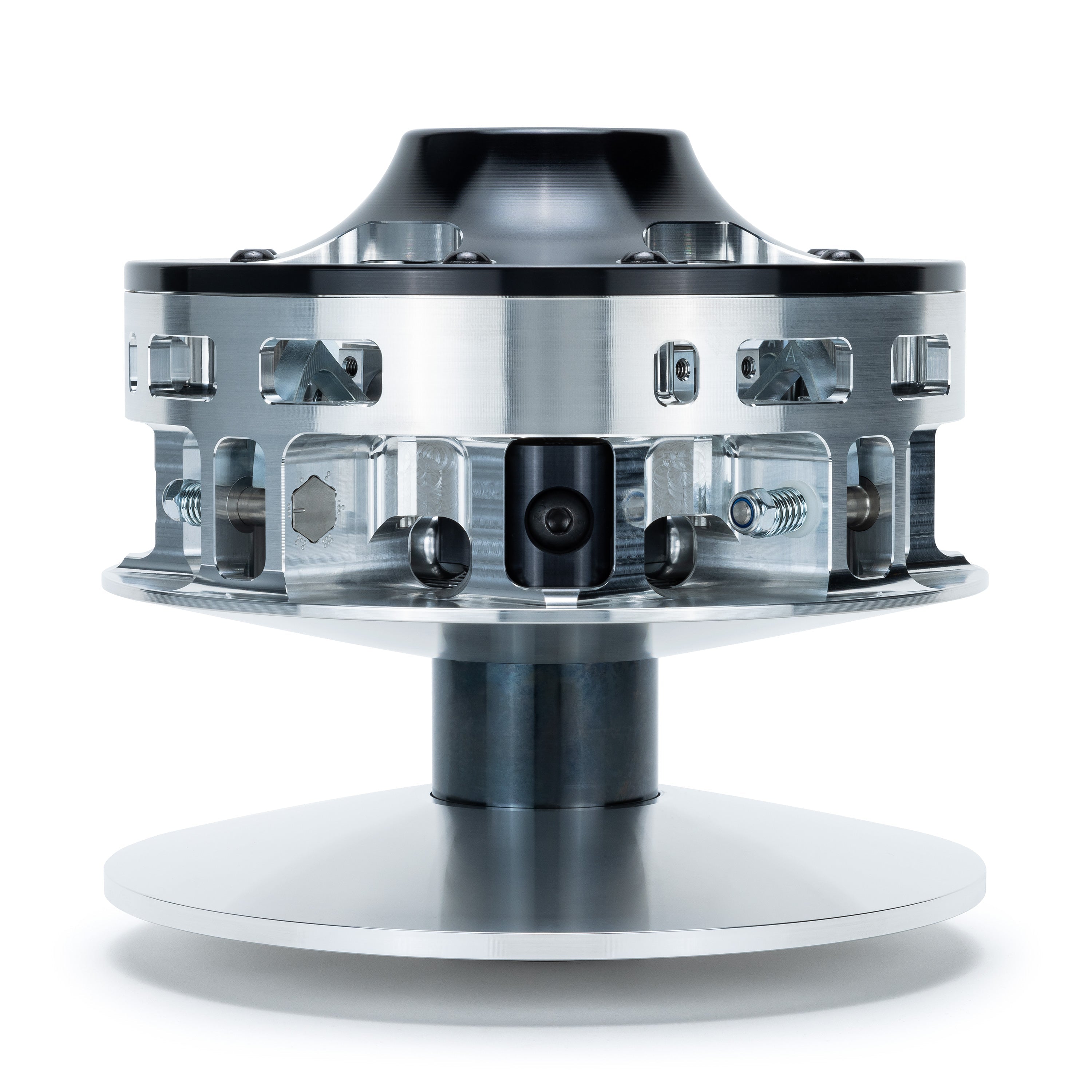

DESCRIPTION

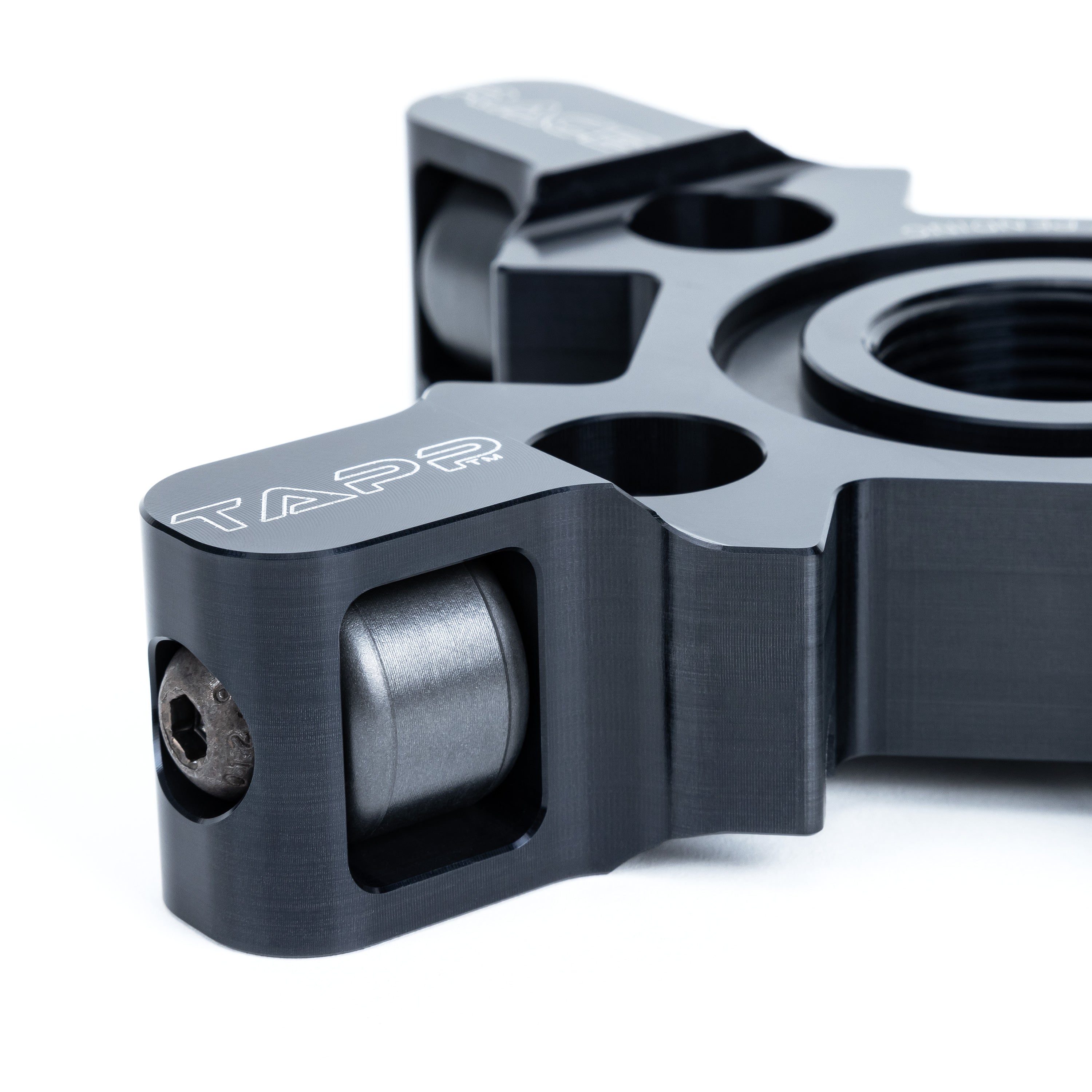

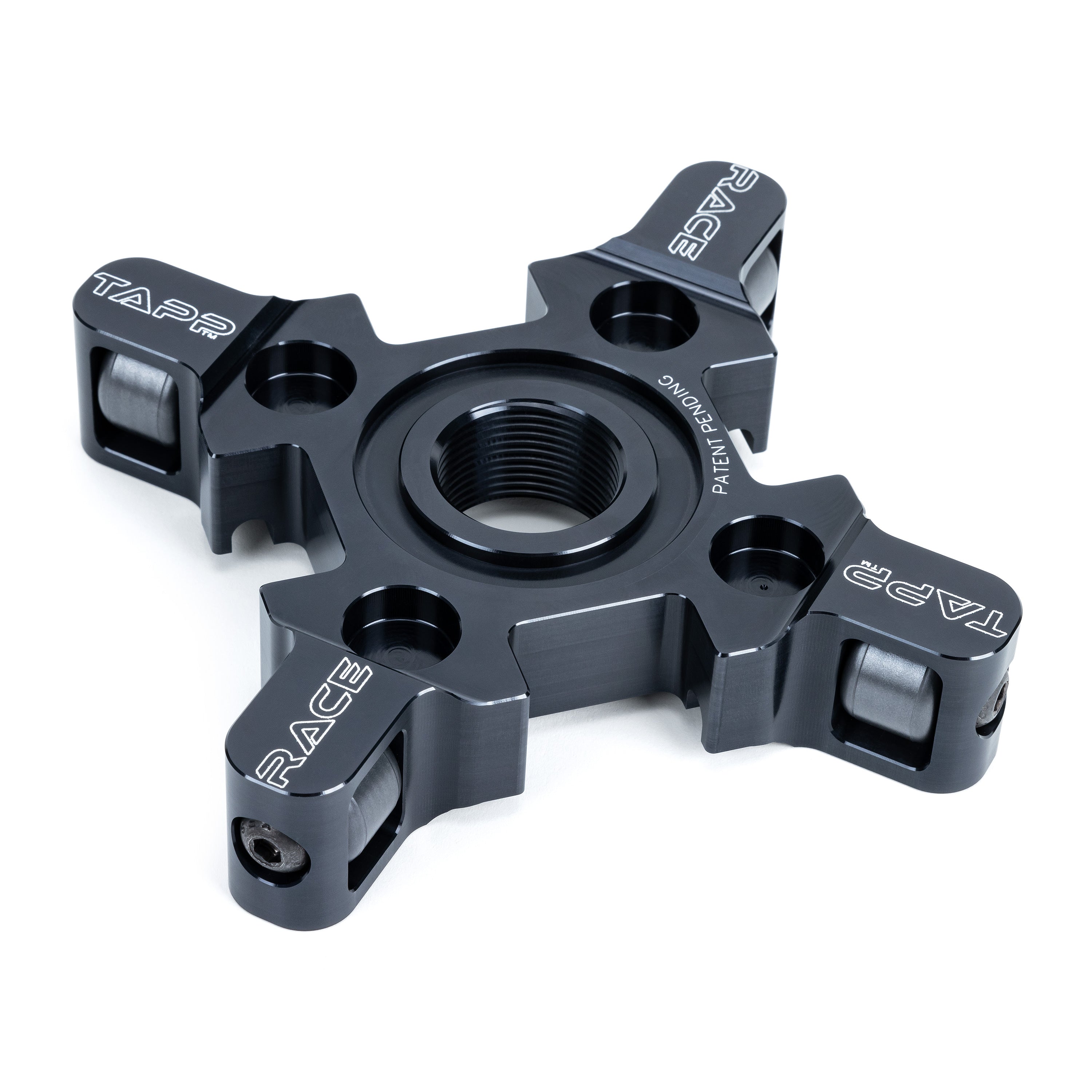

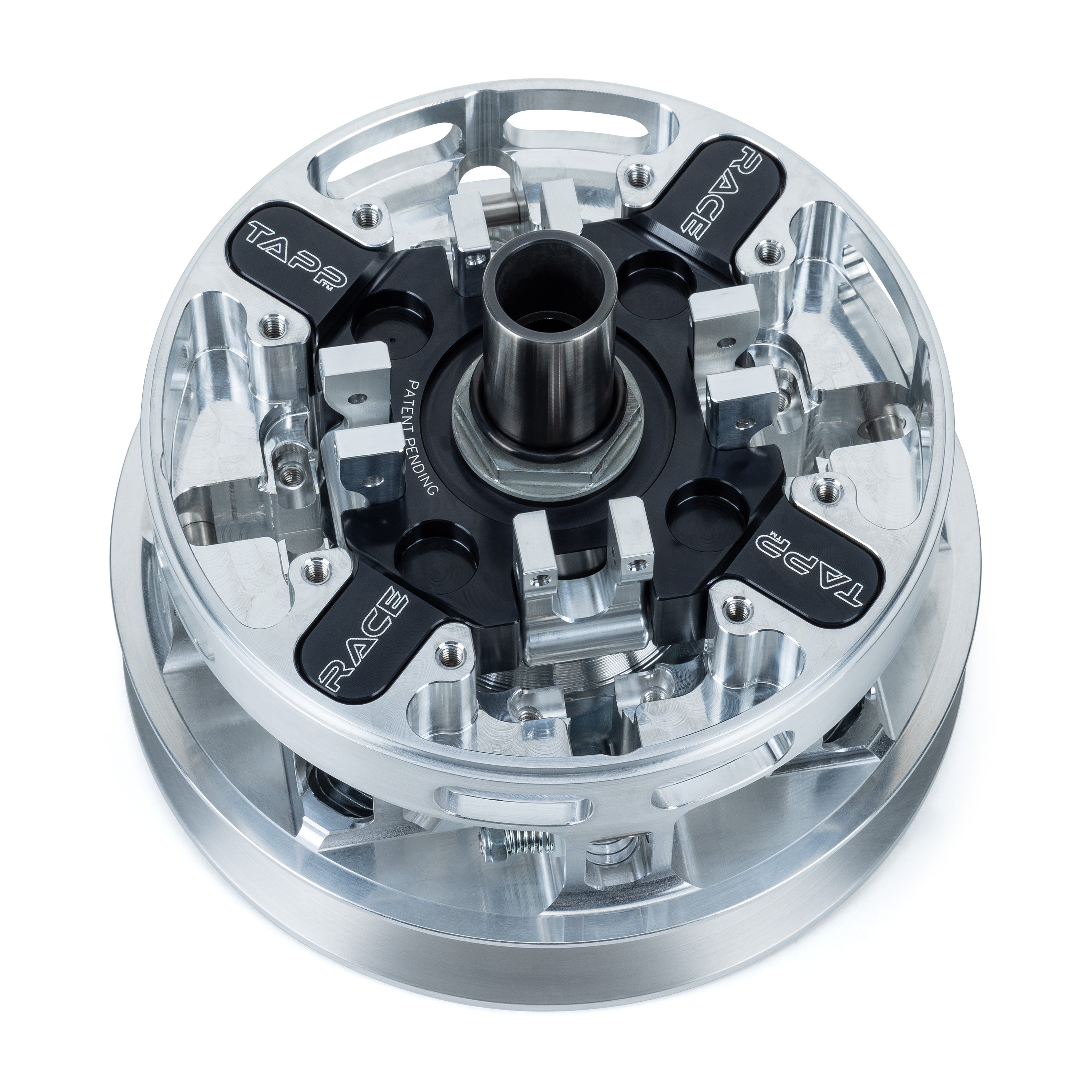

The Roller Spider replaces the button spider to reduce friction with the movable sheave. Benefits: better belt grip, lower belt temps, longer belt life, and smoother engagement.

UPDATED FEATURES:

• ROLLER SPIDER DESIGN: Less friction in the movable sheave for quicker response.

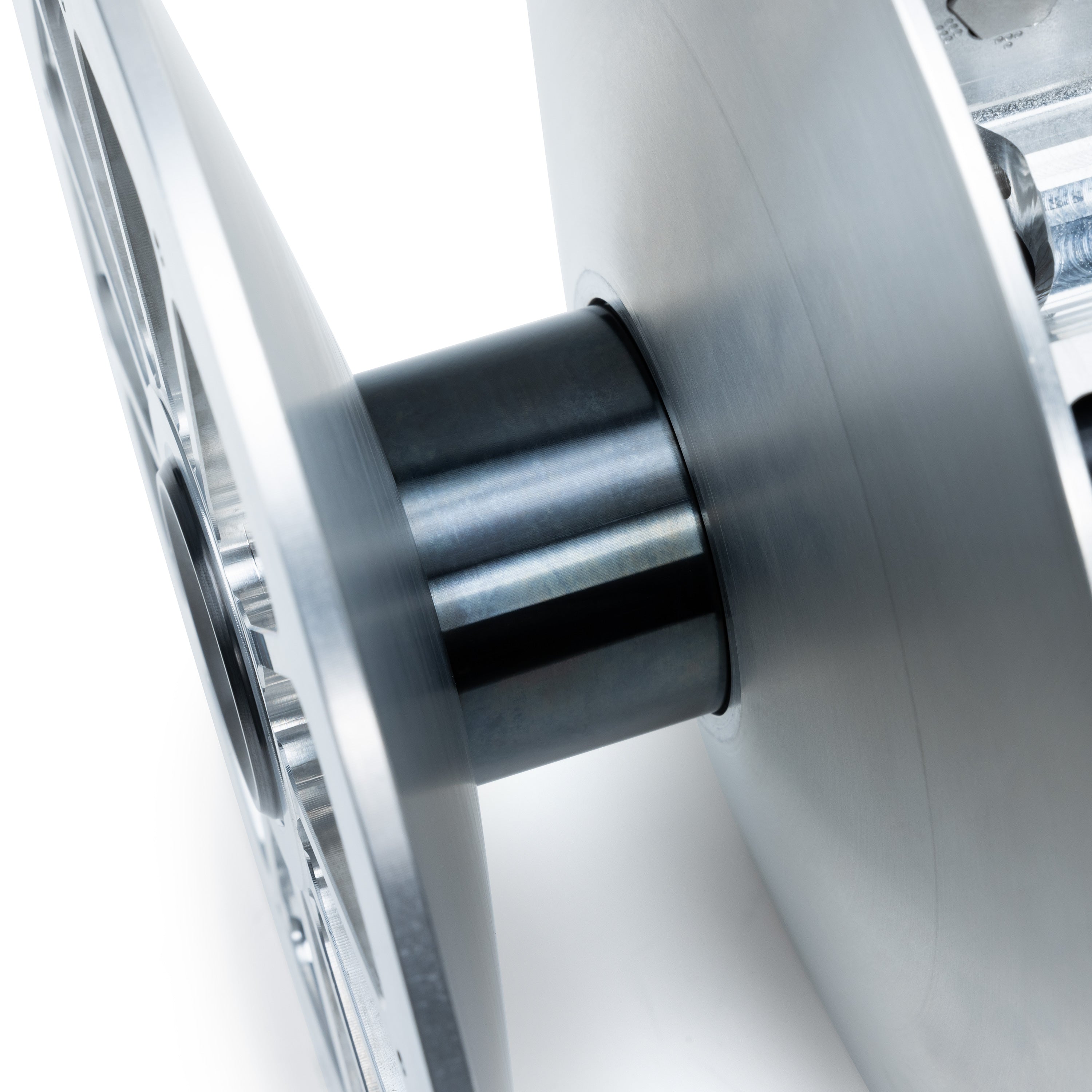

• CENTER BEARING: New black nitrate finish for increased hardness, corrosion resistance, and reduced friction.

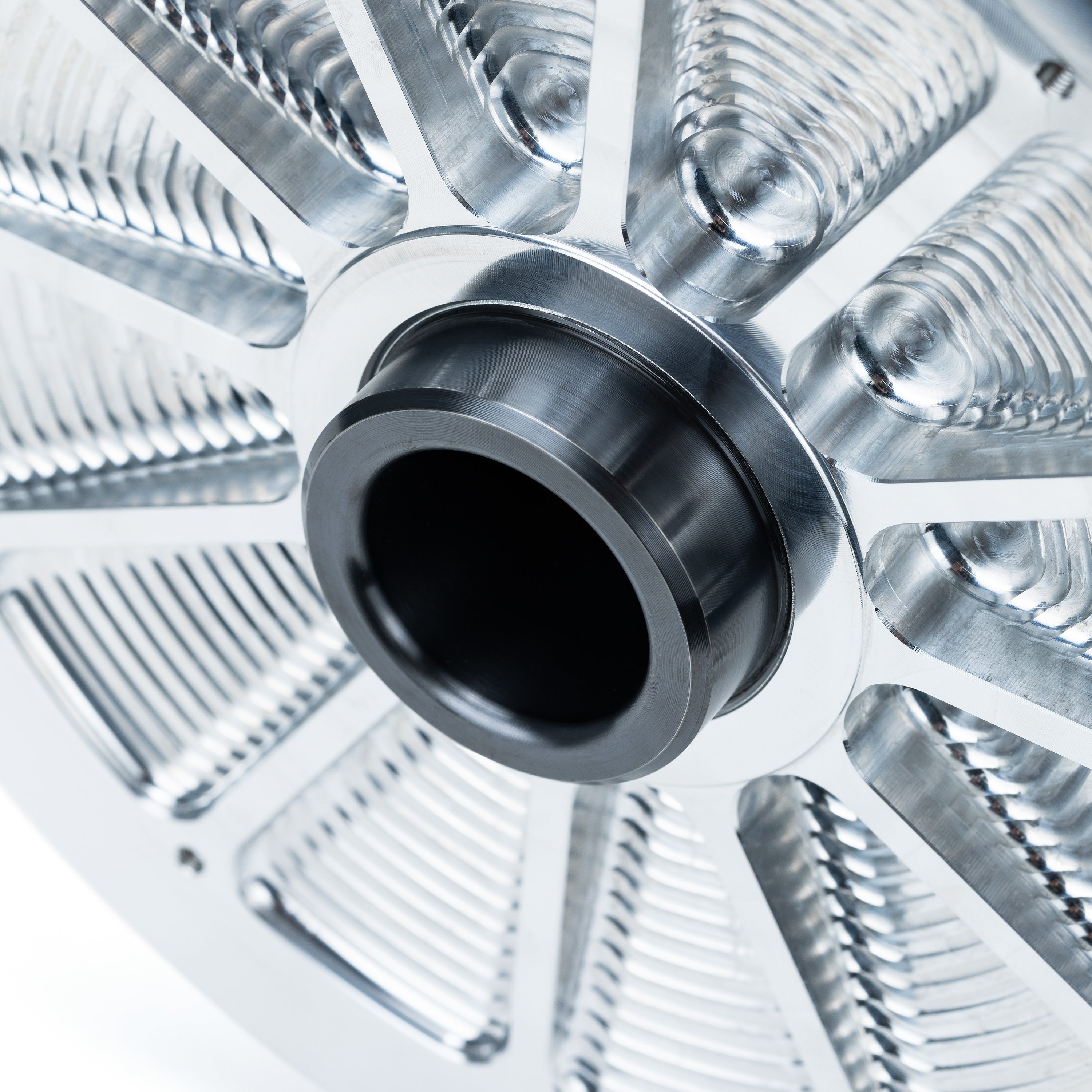

• POST: More material and updated heat treatment to allow over-torquing without clutch slip.
• MOVEABLE SHEAVE: Added material to reinforce clutch towers for higher load capacity.

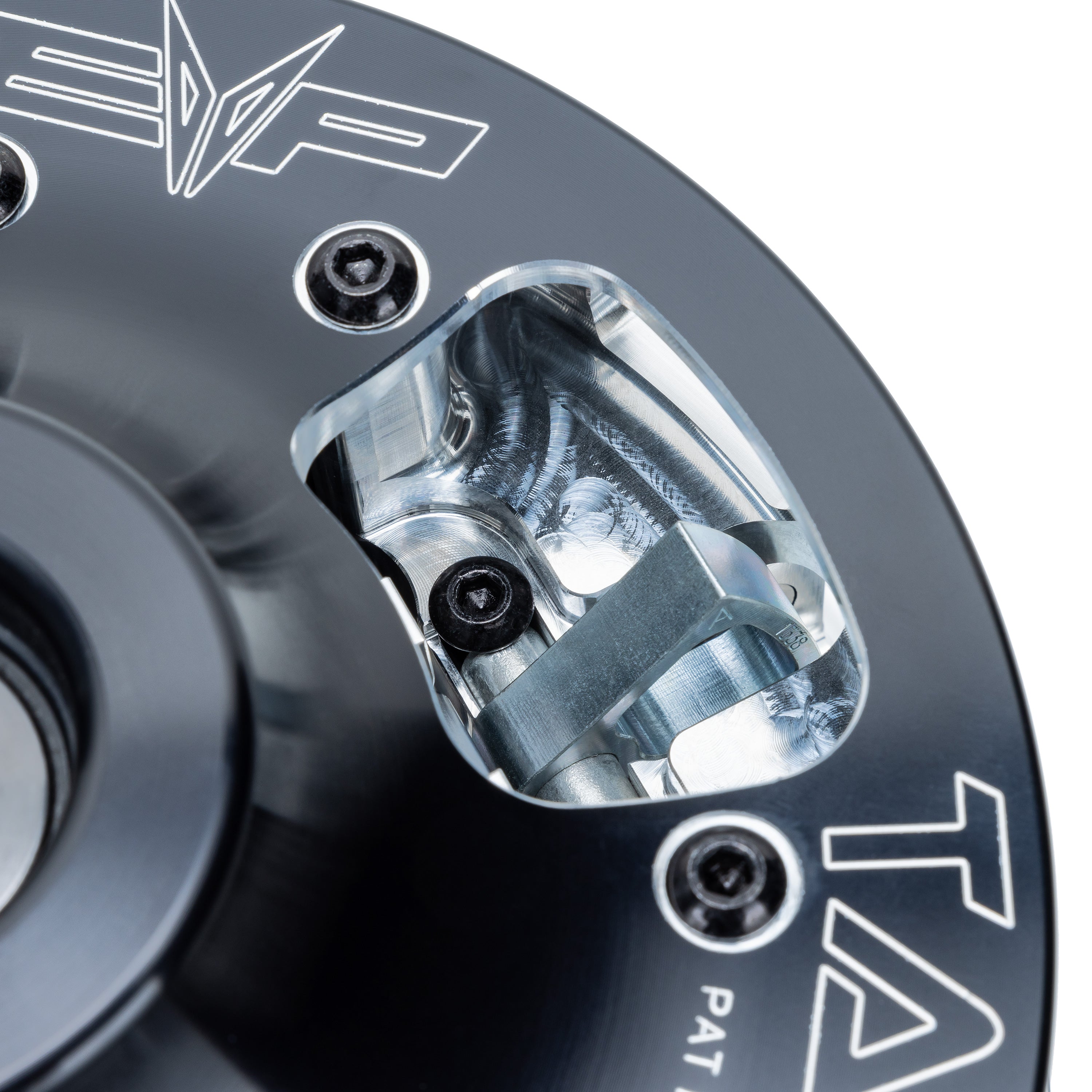

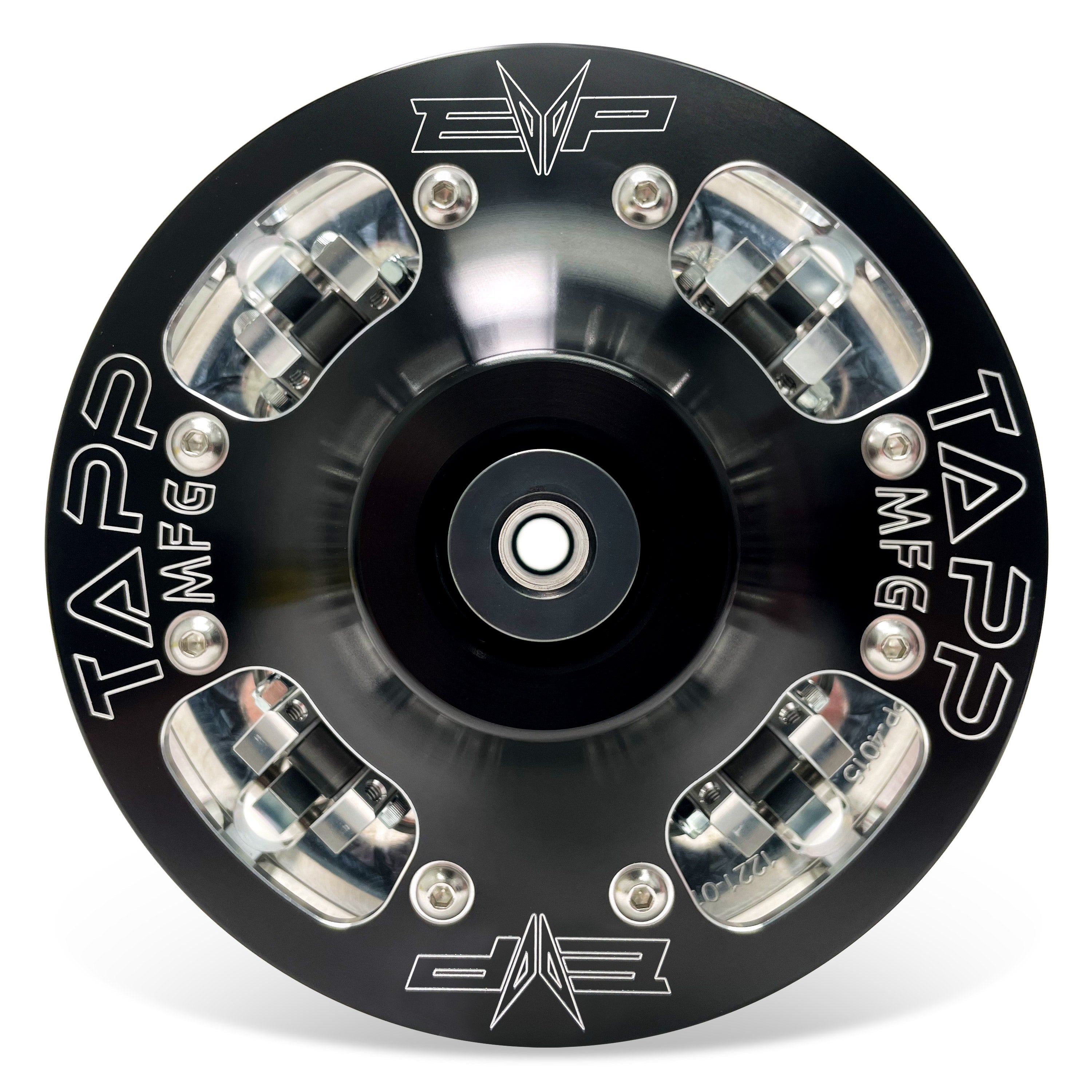

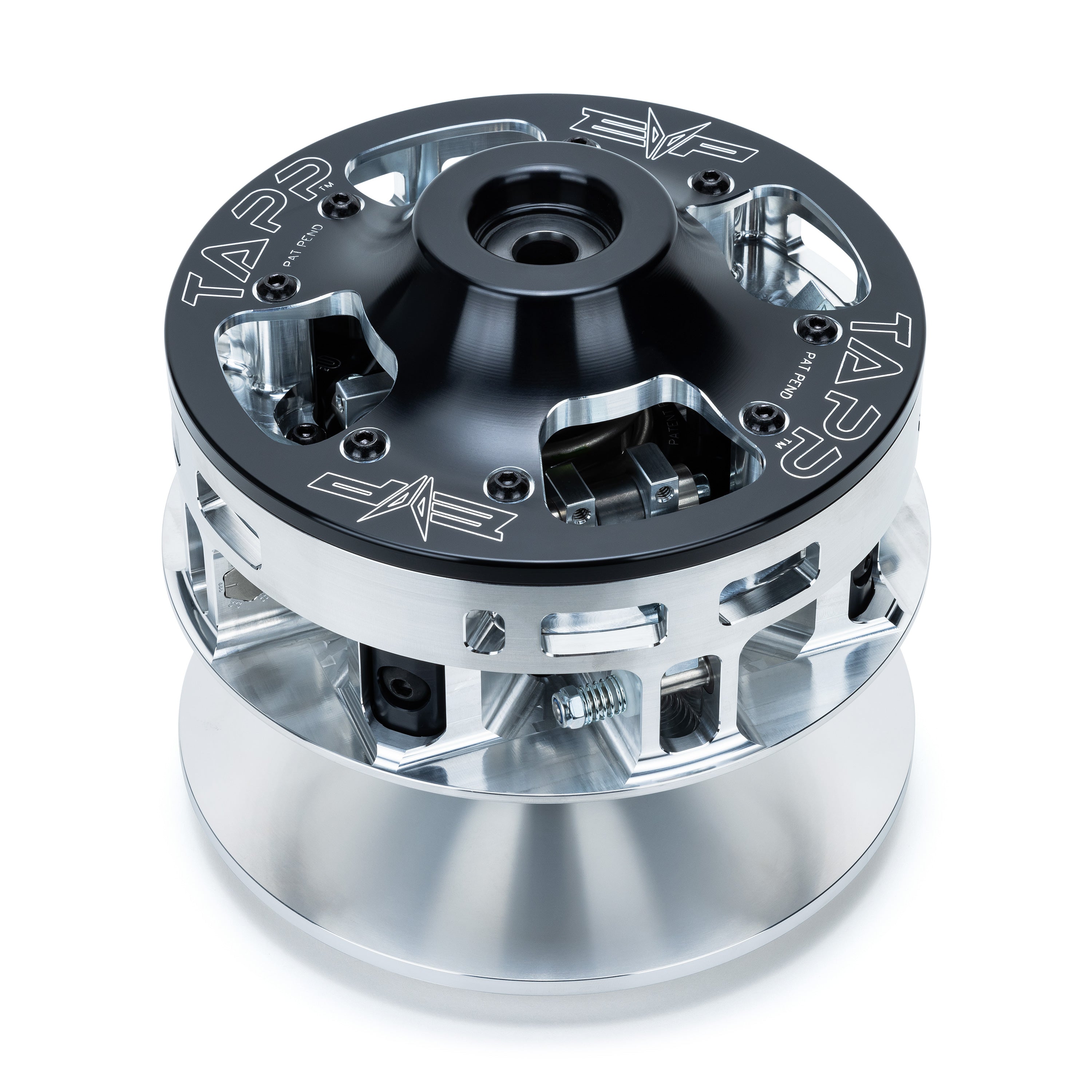

• CLUTCH COVER: Billet cover with larger windows to accept additional weight without modification.

EVP calibration is tuned for the stock Defender secondary. Expect bolt-on responsiveness: faster acceleration, higher top speed, stronger zero-to-40 pulls at higher RPMs, and virtually no clutch chatter. Cooler operation and adjustable weight profiles let the clutch adapt as power increases.

ADDITIONAL FEATURES:

• DURABLE PERFORMANCE: Billet and high-tech materials for extended clutch life.
• ADJUSTABLE & VERSATILE: Swap two-sided ramps, adjust clickers externally, change roller mass under the cover, and use a variety of springs for tuning.
• COOLER TEMPS: Improved venting and multi-angle sheaves lower belt temperatures.
• INSTANT THROTTLE RESPONSE: Low-inertia design and curved sheaves improve belt grip and response.
• SMOOTH, QUIET OPERATION: Ramp-based arms reduce vibration compared to traditional flyweights.

Disclaimer: EVP tech support is provided only for TAPP clutches purchased from EVP. Calibrated primaries may require minor tuning changes; see instructions or contact EVP tech.

Phone: (715) 247-3862 (8:30am–5:00pm CST).

CALIBRATION GUIDE

There are 4 main adjustable components:

• Ramp Profile: Ships with pre-chosen ramps. Do not change unless experienced.

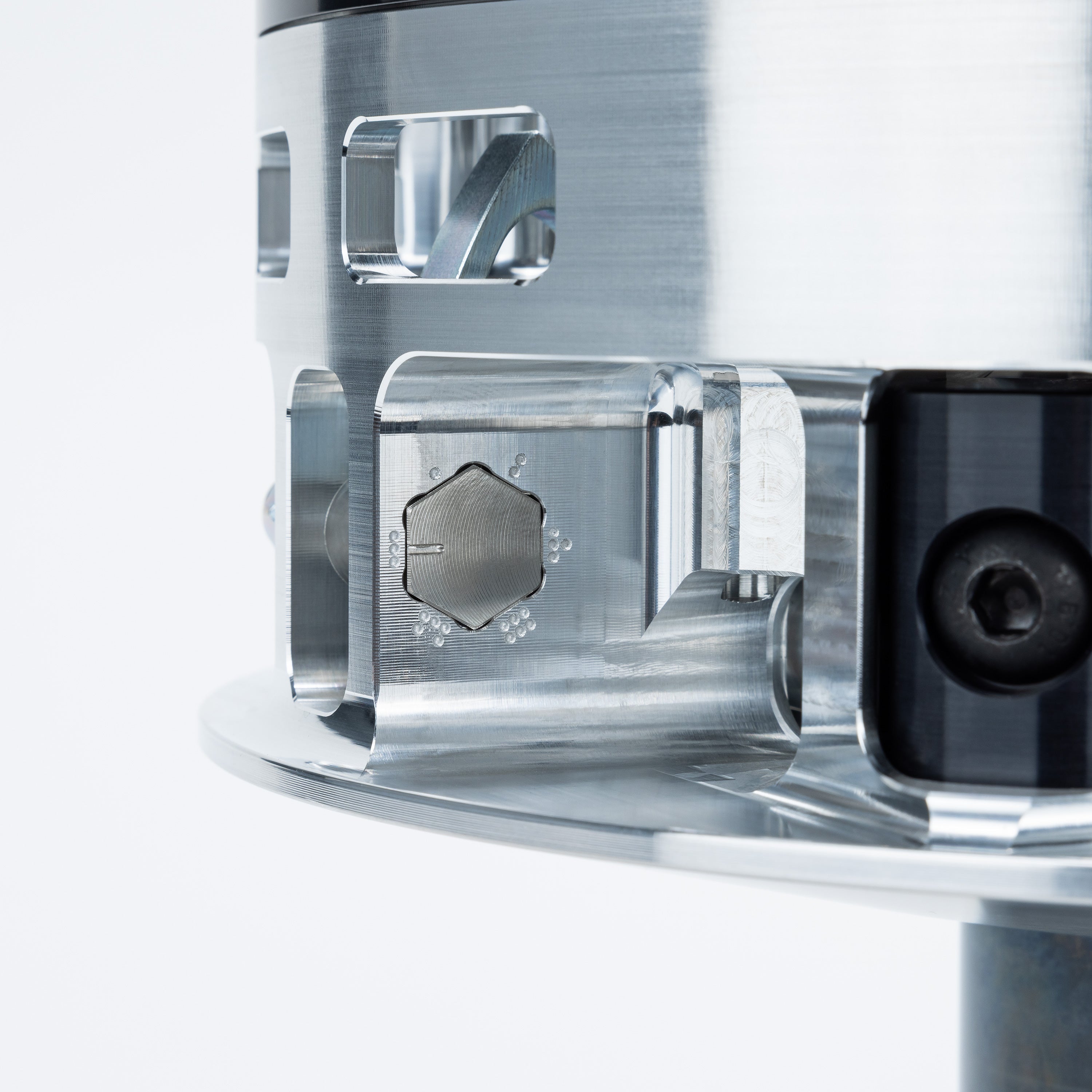

• Ramp Angle: Adjust via Quick Shift Bolts. Higher numbers raise RPM. IMPORTANT - always adjust angles in opposite pairs to avoid imbalance.
• Roller Size: Three sizes: standard, +1mm, +2mm. Larger rollers quicken low-end shifts and lower full-shift RPM; smaller rollers slow shifts and raise full-shift RPM. IMPORTANT - change rollers in opposite pairs.
• Weight Adjustment: Use arm set screws or washers on the roller bolt. Add weight to lower RPM; remove to raise RPM. IMPORTANT - adjust evenly in opposite pairs.

FITMENT

2016-'22 Can-Am Defender 1000 models

INSTRUCTIONS

EVP TAPP Primary Clutch Instructions for Defender

Can-Am Defender HD10 Custom Clutch Kit for EVP DT-130 & DT-195 Turbo System

Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
