DESCRIPTION

EVP DISCLAIMER: Wastegate may need to be adjusted to make advertised boost pressure at higher elevations.

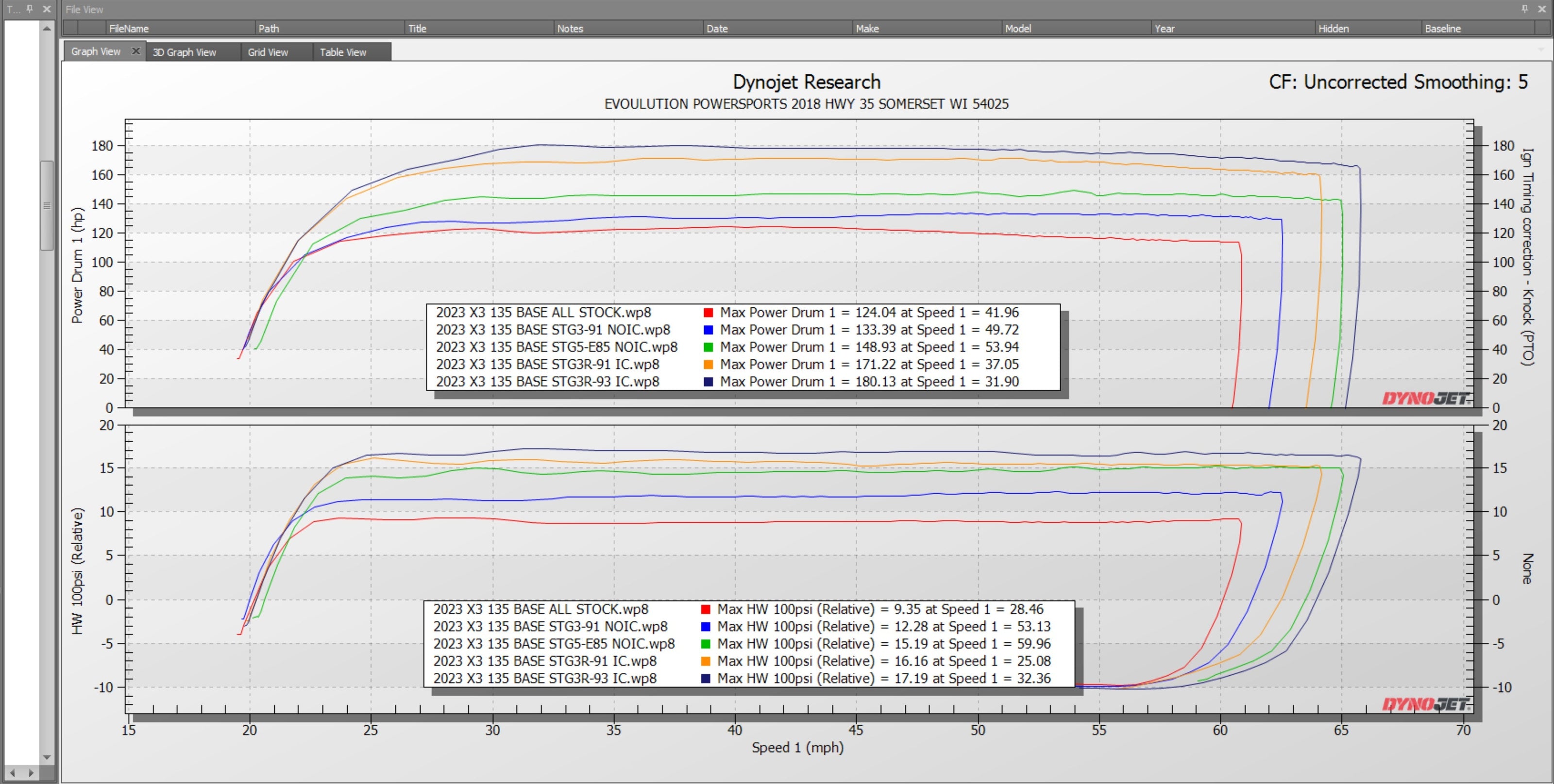

Stock Injector w/ Intercooler ECU Flashes

• Stock — Fuel: 91; Crack: 6 psi; Boost: 8–12 lbs.; WHP: 122; CHP: 140; Req: N/A; Rec: N/A
• Stage 3R-91 — Fuel: 91; Crack: 8 psi; Boost: 15–18 lbs.; WHP: 172; CHP: 198; Req: Intercooler, Charge Tube, ECU Unlock; Rec: EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs
• Stage 3R-93 — Fuel: 93; Crack: 8 psi; Boost: 16–19.5 lbs.; WHP: 181; CHP: 208; Req: Intercooler, Charge Tube, ECU Unlock; Rec: EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs

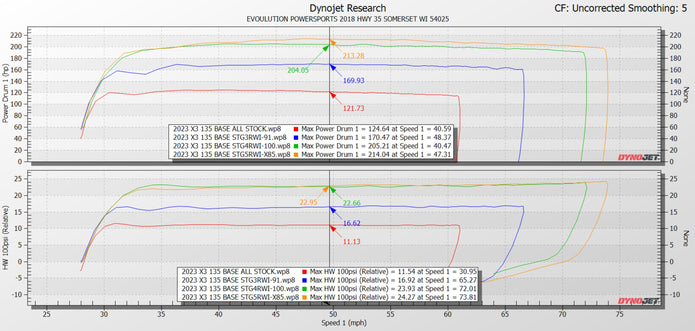

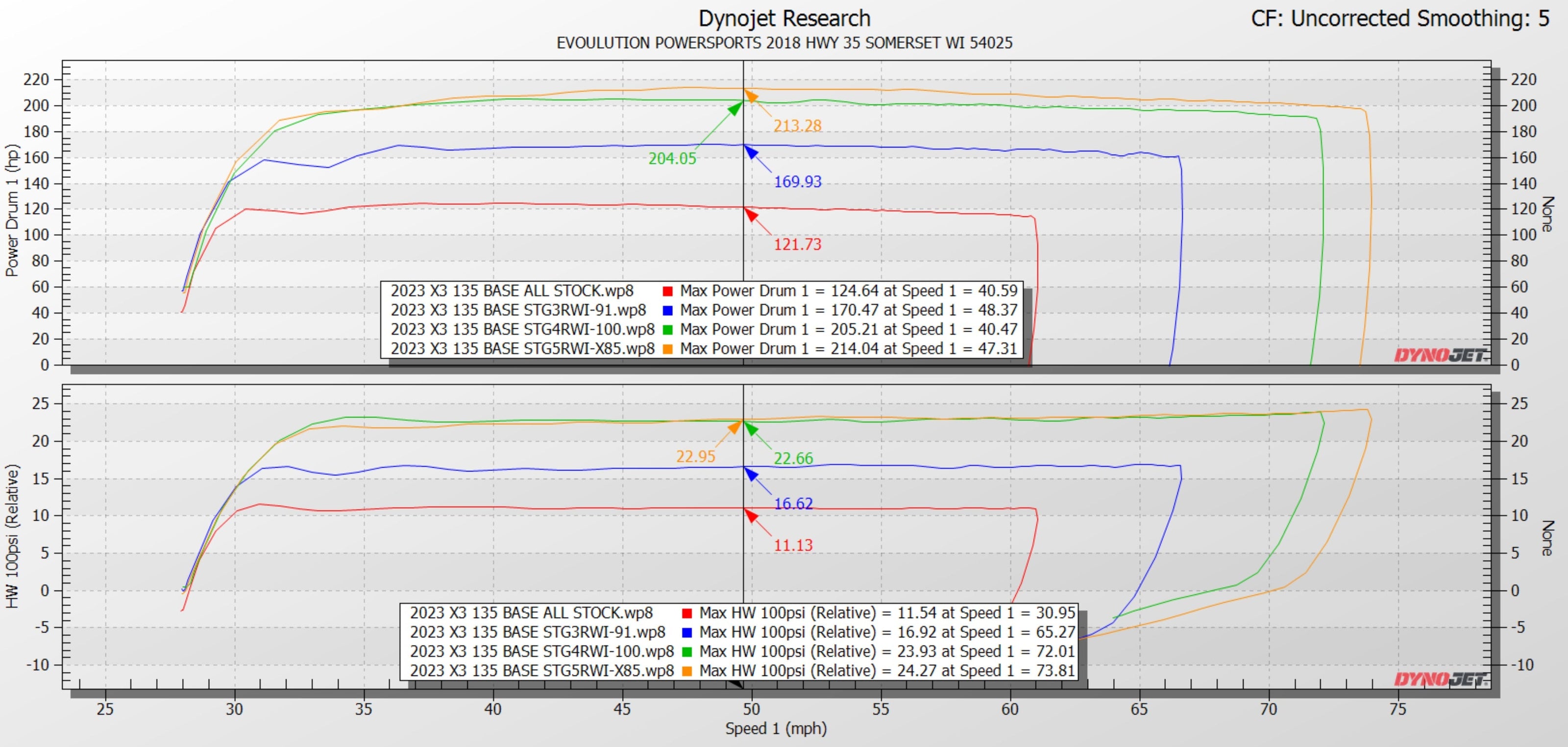

Big Injector w/ Intercooler ECU Flashes

• Stage 3RWi-91 — Fuel: 91; Crack: 11 lbs.; Boost: 15–18 lbs.; WHP: 175; CHP: 201; Included: Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock; Rec: EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs
• Stage 4RWi-100 — Fuel: 100; Crack: 11 lbs.; Boost: 21–24 lbs.; WHP: 205; CHP: 236; Included: Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock; Rec: EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs
• Stage 5RWi-X85 — Fuel: E85; Crack: 11 lbs.; Boost: 21–24 lbs.; WHP: 214; CHP: 246; Included: Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock; Rec: EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs

Note: Up to 90 HP increase on E-85 with the big injector package.

2023 X3 Turbo base features a larger turbo, Turbo RR injectors and the MG1 ECU. EVP's intercooled Power Pack and ECU flash unlock additional power and drivability.

TUNE FEATURES:

• Improved power delivery and throttle response
• Raised low and high gear rev limits (8300 RPM stock to 9300 RPM)
• Removed speed and torque limiters
• Improved boost response
• Race start enabled (no-brake start)
• Optimized engine cooling fan on/off temps
• Compatible with OEM catalytic converter and muffler

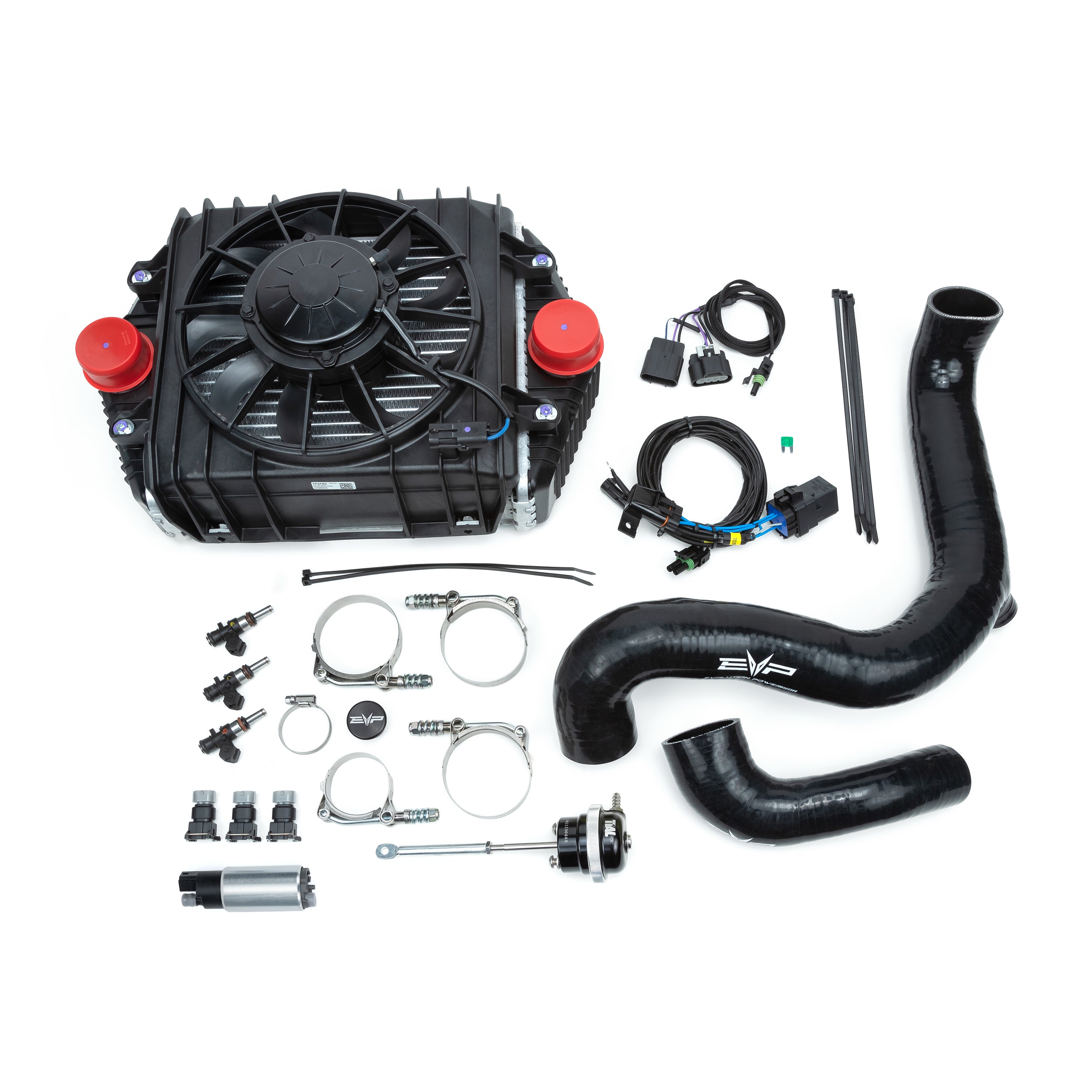

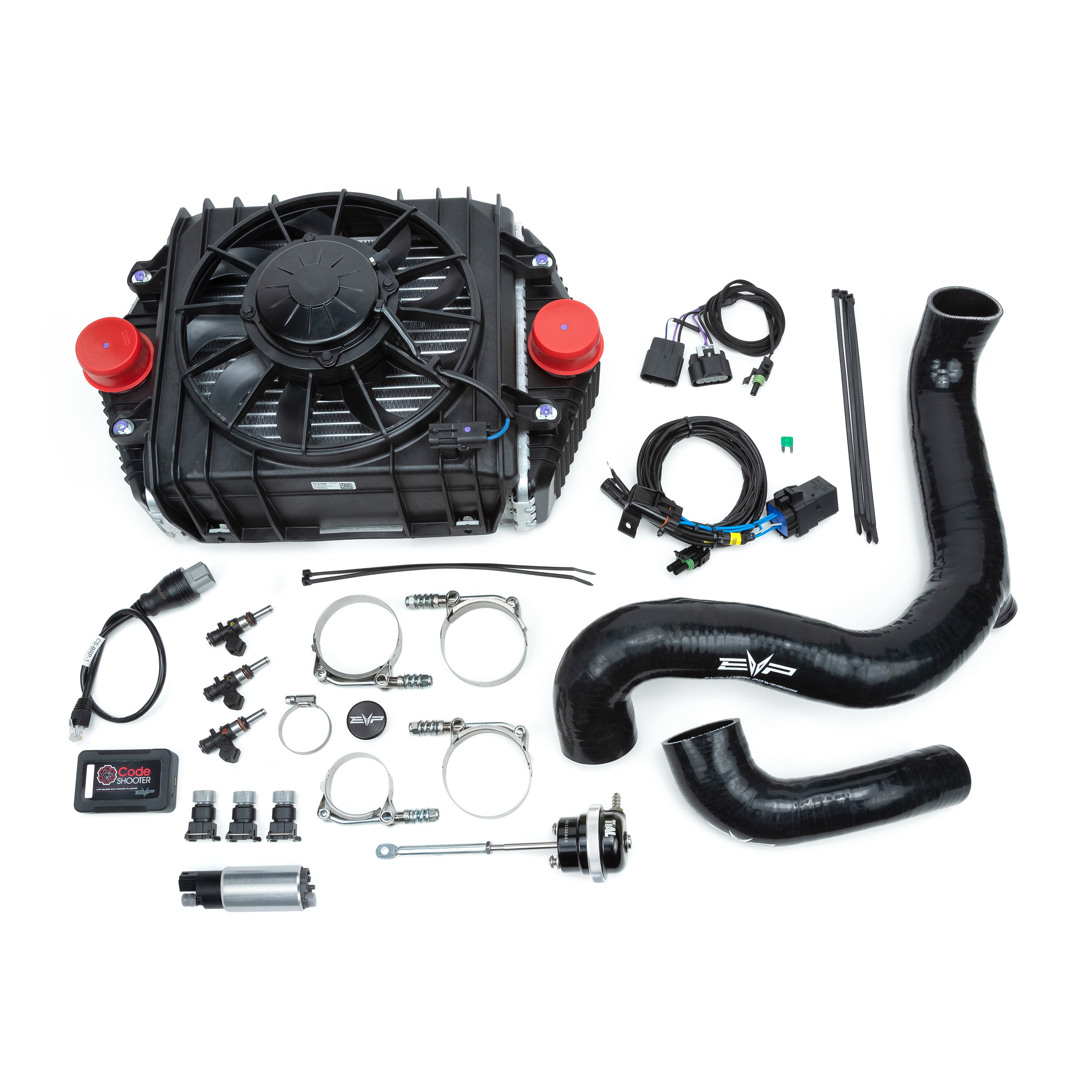

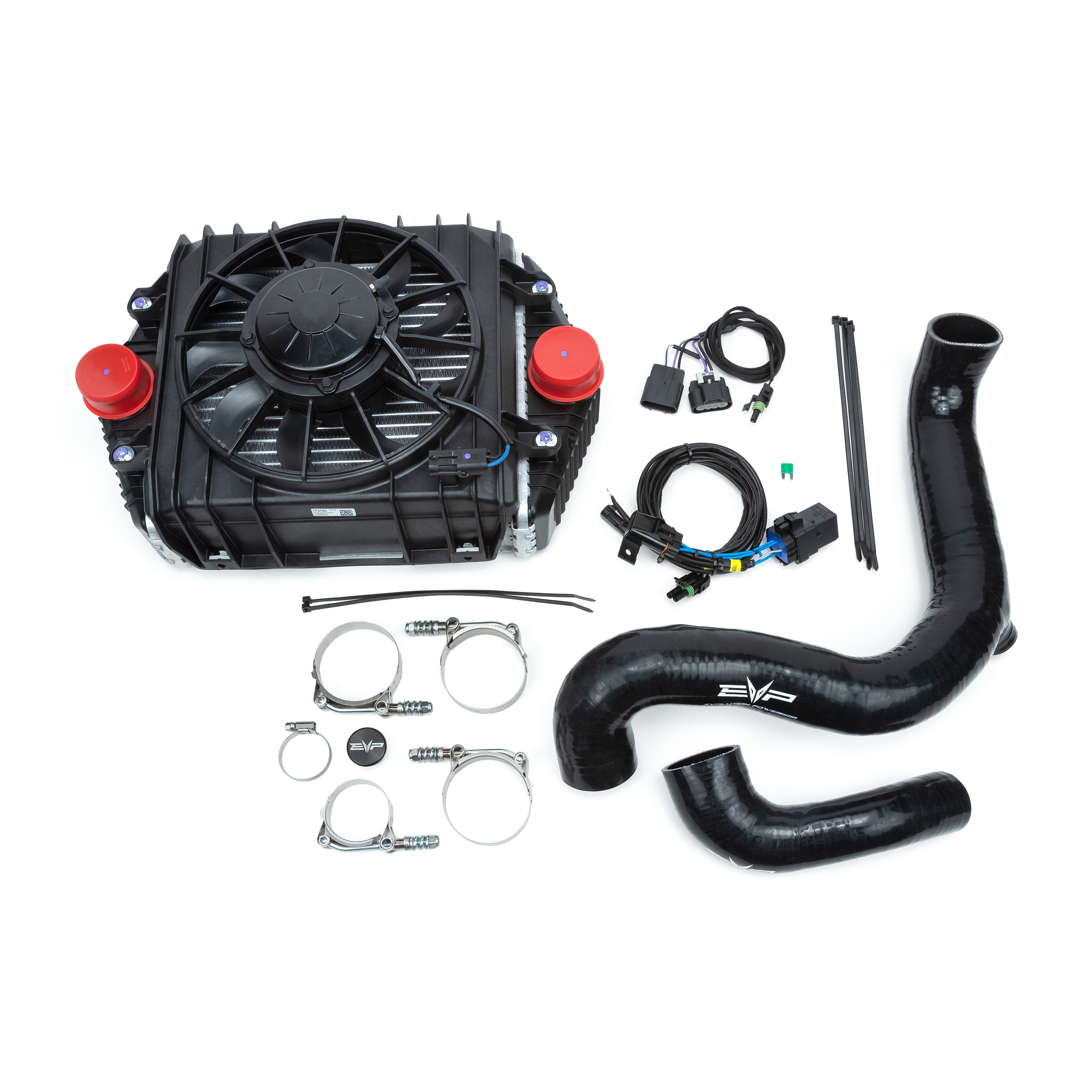

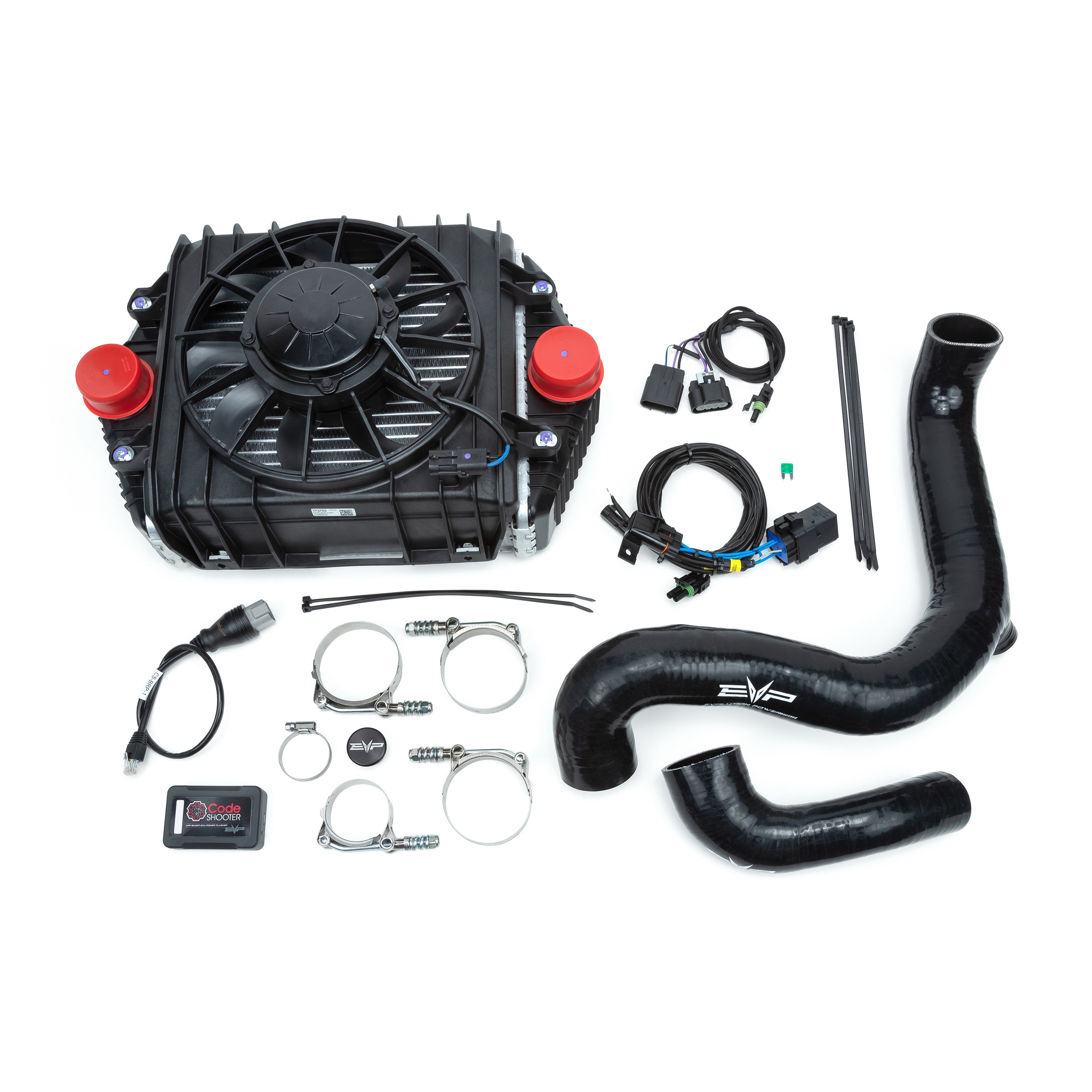

KITS INCLUDE:

• X3 OEM Intercooler w/ Fan
• EVP Intercooler Fan Control Harness
• Black EVP Silicone Charge Tube
• EVP X3 Turbo Intercooled Tuning Package (Stock or Big Injector)
• EVP 2023 X3 ECU Unlock Service & Diagnostic Port Power Flash
• BIG INJECTOR KIT ONLY: EVP Wastegate, 265LPH Fuel Pump, Big Injectors, Injector Adapters
• OPTIONAL: CodeShooter ECU Flashing Device (allows you to flash your own ECU after the initial Unlock Service and Diagnostic Port Power Flash at EVP's Wisconsin Facility)

FITMENT

2023+ Can-Am X3 Turbo Base Model (135 HP)

INSTRUCTIONS

X3 Turbo 135 HP CodeShooter Power Pack With Intercooler

Can-Am Maverick X3 MG1 ECU Removal How to Video

CodeShooter User Manuals

Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
